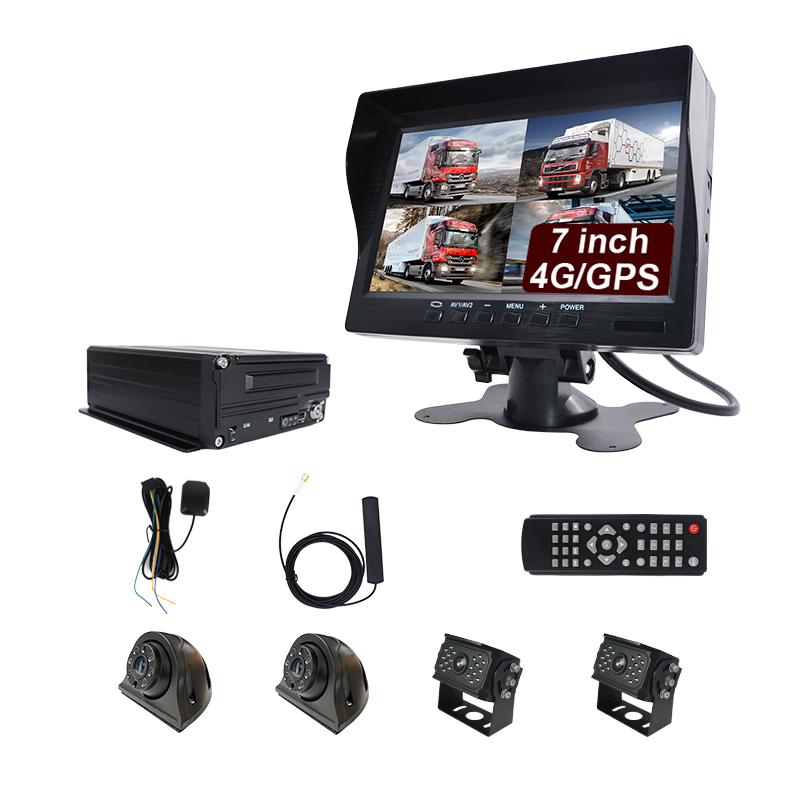

HOPE ADAS DMS Camera Waterproof Camera8CH CMSV6 7 Fleet Management 4G WIFI GPS HDD MDVR Kit

Project	Device parameters	Performance
System	Operating system	Embedded Linux operating system
	Operating language	Chinese / English
	Operation interface	Graphical menu operation interface, support mouse operation
	Password security	Two-level management of user password and administrator password
Audio	Video format	PAL/ NTSC
	Compression standard	H.264
	Image Resolution	1080P/720P /960H/D1/CIF
	Playback quality	1080P/720P /960H/D1/CIF
	Combination method	support max 4ch 1080P
	Decoding ability	4ch 1080P real-time(V1V5)
and	Video quality	Level 1 to 6 can be equipped
video	Screen display	Support 1, 4 screen display(V1/V5)
	Audio compression	G.726
	Recording method	Synchronous recording of sound and video
Recording	Video mode	Manual, alarm
	Video bitrate	Full frame 4096Mbps, 6-level image quality optional
	Audio bit rate	8KB/s
and	Storage medium	12TB HDD/SSD 1SD card storage （256GB)
playback	Video query	Search by channel and video type
	Local playback	Playback by file
software upgrade	Upgrade mode	Manual upgrade, automatic upgrade, remote upgrade
software upgrade	Upgrade method	USB interface, wireless network

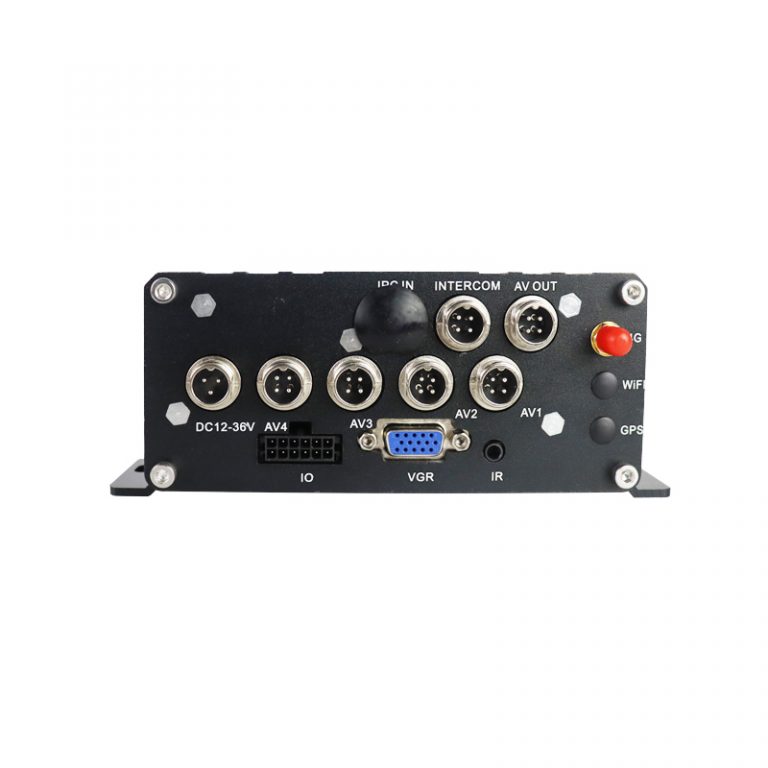

Interface	Audio and video input	4-way aviation head interface(V1/V5)
	Audio and video output	1 VGA video output, 1 aviation audio and video output
	Alarm input	4 level signal inputs, 2 outputs
	USB interface	1 USB 2.0 (support full mouse operation, USB delayed self-test)
	LED indicator	PWR/GPS/REC/NET
	Ignition input	1 channel ACC signal
	SD card lock	1 piece
Extensions	GPS	GPS or GLONASS positioning
Extensions	3G/4G	Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
Other	Power input	DC：8V~36V
	Power Output	12V/2A
	Power consumption	Standby 3mA
	Power consumption	Maximum power consumption 18W @12V 1.5A @24V 0.75A
	Operating temperature	-20 — 70℃
	storage	720P 1G/hour/channel
	storage	960H 750M/hour/channel
	size	180mm140mm62mm
