X1

Screen size:	7 inches
Package size:	*22.51613CM*
Weight:	1.31kg
Resolution:	1024（H）×600（V）
Contrast:	500:1
Brightness:	500cd/m2
Operating frequency：	2400-2483.5MHZ
Transmitted Power:	18db
Video format:	MOV
Response Time(ms):	25
Power Supply:	DC12-36V
Materials:	ABS，metal

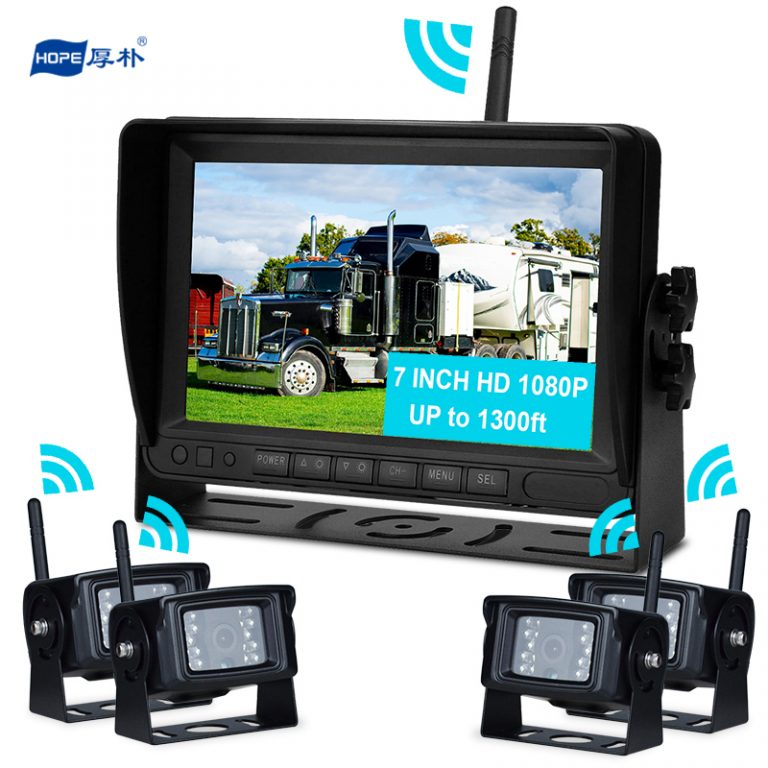

Function	Support 4 cameras
	Display effect can be changed for each individual camera
	Grid lines (can be switched on/off)
	Multiple Viewing Options – Single/Split Screen/Quad
	Easy to install and simple to operate
Wireless signal range	200M in void ground
Operation mode：	manual,remote control operation
Power consumption:	<500mA
Operating temperature:	-20°C ~ +70°C / RH 95% Max
Storage temperature:	-30°C ~ 80°C / RH 95% Max
Support Max TF card storage:	Support Max SD card storage 128GB(not included)
_{Camera parameters:}	DC12-36V, PAL/NTSC, 1/3 inch Infrared Night Vision HD, 250,000 pixels, *127°[H] 170°[D], 1280(H) x 720(V) pixels, IP68, 10G, 0.5lux, 2400-2483.5MHZ, 8 meters, F=2.8mm**
	Operating temperature: -20°C ~ +70°C / RH 95% Max
	Storage temperature: -30°C ~ 80°C / RH 95% Max
